C160MY Turn-mill compound machine tool

The spindle has stable thermal temperature rise, small thermal deformation and high dynamic rotation accuracy.

Get plan
C160MY Turn-mill compound machine tool
相关标签：数控机床车铣复合,车铣复合数控车床,车铣复合车床

Product Features

  • 01
    This series of horizontal turret tailstock CNC lathe, the overall 30° inclined bed body in the design of the structure analysis, inhibit heavy cutting or high-speed action caused by the minimum, detailed analysis of the size of the force, the position of the force and its deformation, to ensure sufficient rigidity.
  • 02
    The use of high-grade Mihanna cast iron, artificial aging (heat treatment) and natural aging methods to remove internal stresses provides optimal rigidity. Stability and accuracy retention.
  • 03
    Equipped with high-precision unit spindle, double row roller type shear bearing, high radial rigidity of shaft, stable thermal temperature rise of spindle, small thermal deformation, high dynamic rotation accuracy.
  • 04
    Equipped with 12-station BMT40 servo-powered turret and precision hydraulic tailstock, it can automatically complete the internal and external cylindrical surface, internal and external threads, conical surface, arc surface, end face, grooving, chamfering and other turning processes for long and short shaft and disc parts, and complete drilling, tapping, three-axis linkage milling and other processes for workpiece end faces and outer circles.
C160MY Turn-mill compound machine tool


Specifications

Processing range

Spindle

X&Z axis

Motor power

Dota

Tailstock

Other

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ225mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length240mm
Chuck size6'
Bar capacity

Φ46mm

Spindle noseA 2-5
Spindle bearing modelSynchronous servo electric spindle
Spindle through apertureΦ66mm
Minimum spindle positioning accuracy (C-axis)0.001° Spindle motor + magnetic ring + disc brake
Dynamic accuracy (C-axis)±0.02° Spindle motor + magnetic ring + disc brake
Spindle rated torque65Nm
Spindle maximum speed4500rpm
X/Z axis maximum travel110/70/250mm
X/Z axis rapid feed28/8/28m/min
X/Z axis slide rail form30mm linear rail
X/Z axis ball screw diameter/pitchΦ32mm/Pitch10
X/Z axis positioning accuracy0.008mm/1000mm
X/Z axis repeat positioning accuracy≤0.005mm
Spindle motor11kW
X/Zaxis servo motor rated torque8.34Nm
Power motor11Nm
Hydraulic station motor1.5kW
Pump motor0.55kW
Air conditioner300W
Turret modelBMT40-12T
Tool changing speed (adjacent knife/opposite edge knife)0.27s/ 0.57s
Round cutterΦ32mm
Square tool≤20mm
Power head (turret) tool specificationsER25（1~13mm）
Maximum speed of the driven toolholder5000rpm
Mandrel inner tapered holeMT#4
Mandrel diameter70mm
Mandrel travel100mm
Spindle control methodHydraulic programmable
Tailstock body travel200mm
Tailstock body movement methodMechanical
Standard controllerSYNTEC 22TAVoltage/power requirements380V/20kVA
Water tank capacity300LMachine weight3200kg
Hydraulic tank capacity60LAppearance size (L× W× H)2200×1600×1700mm

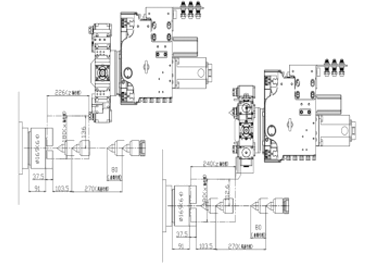

Dimensions
